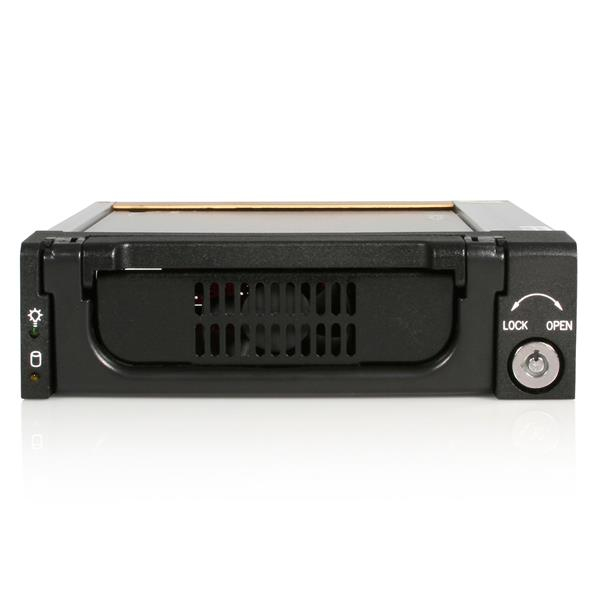

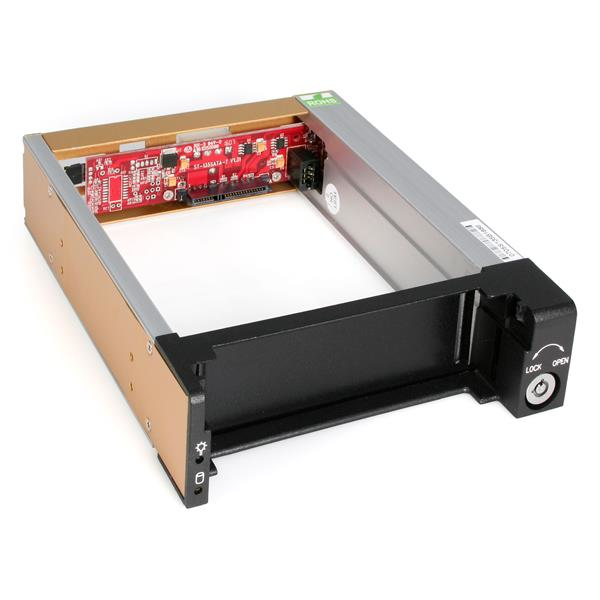

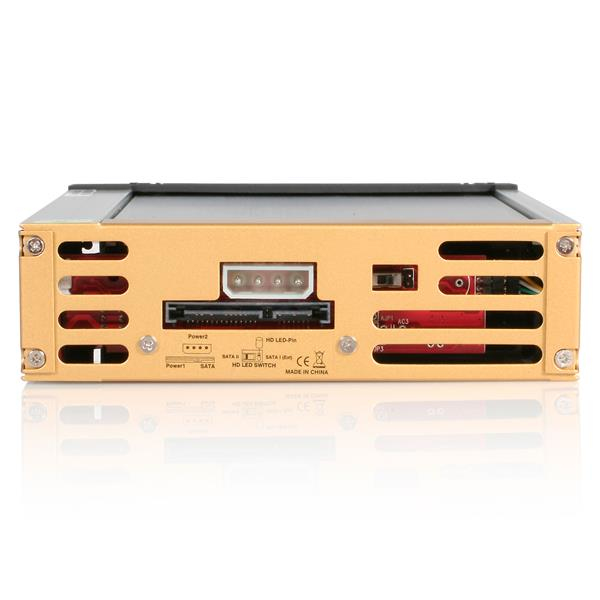

StarTech.com Black Aluminum 5.25in Rugged SATA Hard Drive Mobile Rack Drawer
Description
This high quality Removable SATA Hard Drive Drawer/Mobile Rack delivers a professional-grade hot-swap solution, allowing you to quickly swap SATA hard drives in/out of a computer without having to open the computer case. The mobile rack is fully compatible with RAID installations to ensure maximum performance and versatility for enhanced storage applications.
To maximize performance and utilize the full speed potential of your SATA III hard drives, this HDD Backplane supports SATA III for transfer speeds up to 6 Gbps when paired with a compatible controller.

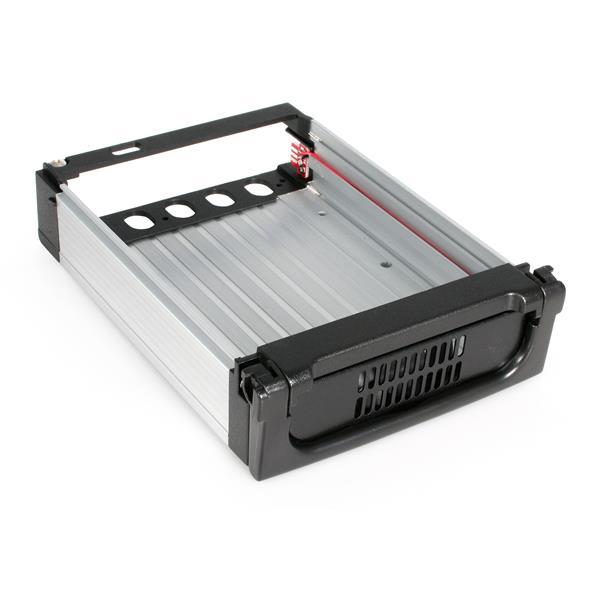

Simply install the drive bay into a 5.25in bay on the host computer, then mount a 3.5in SATA HDD into the (removable) caddy. Connecting the SATA hard drive to the computer is as easy as inserting the caddy into the drive bay, which can be locked to prevent unauthorized removal of the drive. Features a front panel ball bearing fan, aluminum construction and 25K insertion rating. Backed by StarTech.com's 2-year warranty.
This product is interchangeable as a replacement for StorCase SATA models S21J111, SC21J111 and RJR110.
The StarTech.com Advantage
- Maximize performance, with file transfer speeds up to 6Gbps when paired with SATA III HDD and controller
- Mobile rack system makes removing/replacing drives quick and safe, while a key lock prevents unauthorized access to the drive

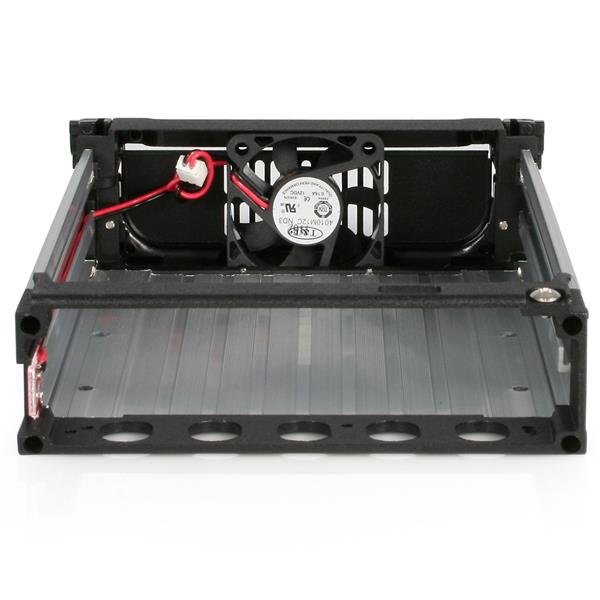

- Solid aluminum construction, 40mm cooling fan and 25, 000+ insertion rating ensures durability and reliability from the Mobile Rack and the SATA drive
| Features | |
|---|---|
| LED indicators | Activity, Power |
| Certification | CE, REACH |
| HDD size | 3.5" |
| Number of cycles | 25000 |
| Key lock | Yes |
| Type | Carrier panel |
| Size (imperial) | 13.3 cm (5.25") |
| Number of HDDs supported | 1 |
| Number of fans | 1 fan(s) |
| HDD interface | Serial ATA, Serial ATA II, Serial ATA III |
| Fan diameter | 4 cm |
| Data transfer rate | 6 Gbit/s |
| Product colour | Black |
| Material | Aluminium |
| Technical details | |
| LED indicators | Activity, Power |
| Certification | CE, REACH |
| HDD size | 3.5" |
| Number of cycles | 25000 |
| Key lock | Yes |
| Type | Carrier panel |
| Size (imperial) | 13.3 cm (5.25") |
| Number of HDDs supported | 1 |
| Number of fans | 1 fan(s) |
| HDD interface | Serial ATA, Serial ATA II, Serial ATA III |
| Fan diameter | 4 cm |
| Dust cover included | Yes |
| Data transfer rate | 6 Gbit/s |
| Product colour | Black |
| Material | Aluminium |
| Package width | 153 mm |
| Package height | 47 mm |
| Package depth | 195 mm |
| Sustainability certificates | RoHS |
| Weight & dimensions | |
| Width | 147 mm |
| Weight | 782 g |
| Height | 41 mm |
| Depth | 190 mm |
| Packaging data | |
| Package weight | 834 g |
| Package width | 153 mm |
| Package height | 47 mm |
| Package depth | 195 mm |
| Packaging content | |
| Screws included | Yes |
| Number of lock keys included | 2 pc(s) |
| Dust cover included | Yes |
| Cables included | SATA |
Specifications
UNSPSC Code
43201615
Brand
StarTech
Categories
Chassis Components
Category
Drive Bay Panels
StarTech.com Black Aluminum 5.25in Rugged SATA Hard Drive Mobile Rack Drawer
